Arkansas Steel Plant
Company: Lifetime Green Coatings
Renovations: Arkansas Steel Plant

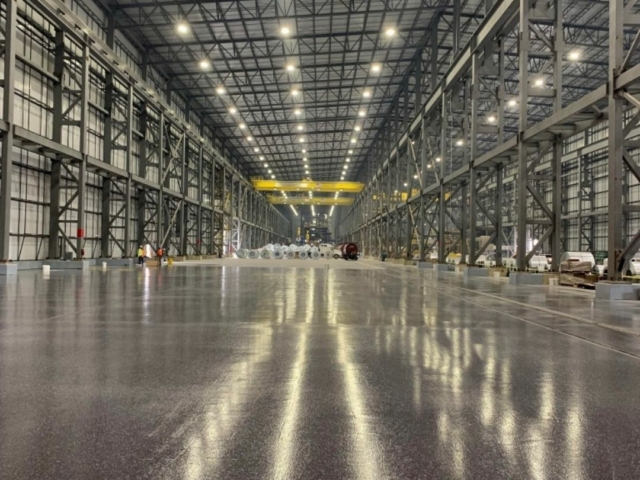

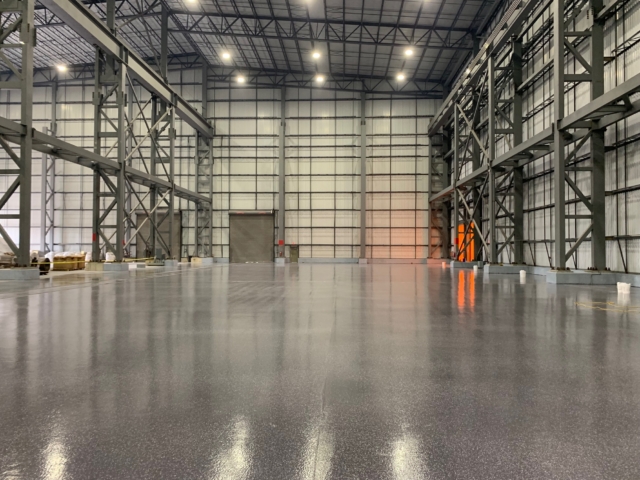

In 2018, the USA produced 86.7 million metric tons of crude steel, compared to China which made 928.3 million metric tons. This case study concerns a large steelworks in Arkansas. It wanted to upgrade an area of flooring totaling 240,000 square feet.
A steelworks is in the heavy industrial category which can be very tough on flooring and requiring any protective coating to be very robust and highly resistant to foot and vehicle traffic as well as to heat and dust. In cleaning cycles, it must also be waterproof.
Lifetime Green Coatings was chosen largely because of its long history in heavy industrial and commercial use. It, today, protects thousands of oil and production water tanks which often contain a cocktail of chemicals, including acids. VOC-free Lifetime Green Coatings is non-toxic and actually pure enough to be used in contact with human drinking water and food. It has phenomenal adhesion and has been demonstrated sticking strongly to non-stick surfaces, including Teflon. This was a critical consideration in the choice for Lifetime Green Coatings as was the simplicity of application and the rapid full cure time of only 24 hours. Conventional epoxies can take several days to achieve full cure and also have a tendency to micro-crack which can be a serious issue for steel ship decks which flex and are subject to wide temperature fluctuations. Lifetime Green Coatings has high flexibility which lasts its lifetime. It also molecularly combines back with original, clean Lifetime Green Coatings surfaces, should repairs be required.
Key Adhesion Numbers:
|Thickness||0.050”-0.100” (1.3mm - 2.5mm)|
|Durability||Astm C627 [16,000 Passes Of An Average Sized Car] [No Debonding Or Deterioration Occurred]|
|Tensile Strength||Astm D412 900 Psi (20 mil application) 2000 Psi (35-40 mil application)|
|Elongation||Astm D412 20 - 100%|
|Crack Bridging||1/16” (1.6mm)|
|Impact Resistance||(Izod) 2 Ft-lbsf/Inch ( Drops Sharply At -20°c ) (11 Kgf-mm/Mm) |
Hardness - Shore Durometer D 50 +/- 10
|Hardness||Shore Durometer D 50 +/- 10|
|Heat Resistance||Continuous 200°f (93°c)|
|Minimum Temperature||-20 To -40°f (-30 To -40°c )|
|Maximum Temperature||200°f (93°c)|
|Water Absorption||Astm D570 0.3 %|
|Rapid Chloride Permeability||Astm C1202 17 (Nil) Coulombs [After 6 Hours]|
What We Did

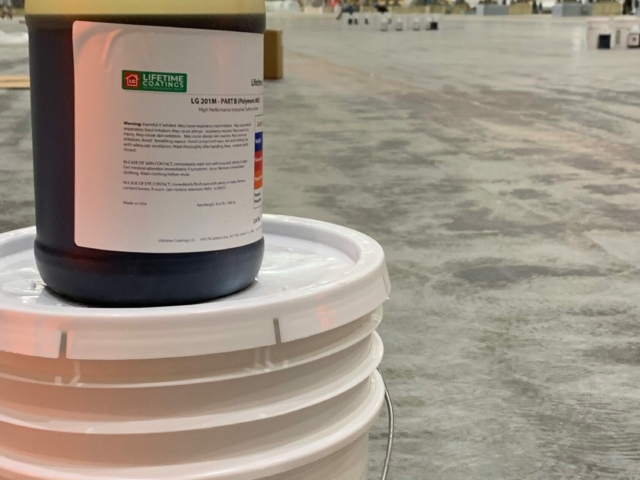

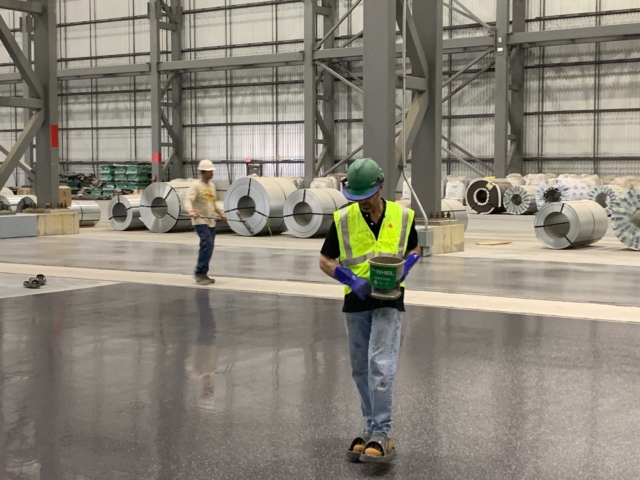

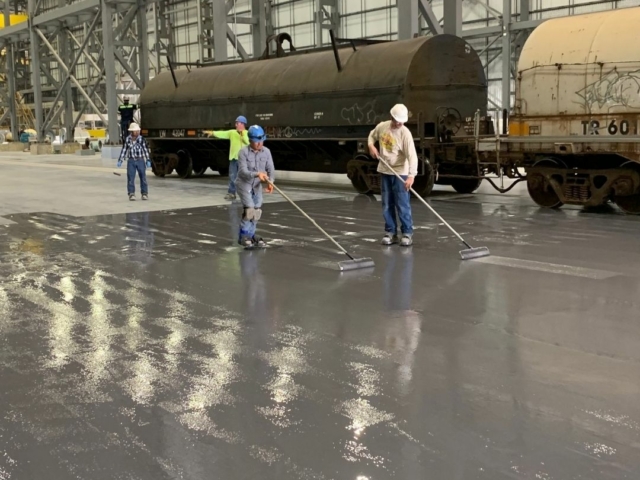

An average of 30 mils coatings were manually applied from five-gallon buckets of Lifetime Green Coatings. Once activated, it has an average working time of 40 minutes. If the ambient temperatures are very high, then less activator chemical is used. In this case, the preparation work had been relatively simple with cleaning, removing all trace of dust. Cracks were readily filled during the application process and the natural, self-leveling character of Lifetime Green Coatings ensured perfectly cured surfaces and rapid return to service. The work was carried out by Lifetime Coatings.
